Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Tuxun |
| Certification: | CE/EMC/ETL/LVD |
| Model Number: | CNS110 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 2 EA |
| Price: | $311-$344 |
| Packaging Details: | Carton；Size(mm):550*400*200 Weight:11.5kg |
| Delivery Time: | 10~20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 PCS/M |
|
Detail Information |
|||
| Voltage: | 230VAC | Voltage Range: | 170-280VAC(Suitable For Persongal Computerds） |
|---|---|---|---|
| Frequency Range: | 50Hz/60Hz（Automatic Adaptation） | Grid Voltage Regulation（battry Mode）: | 230VAC±5% |
| Surge Power: | 700VA | Overcharge Protection: | 33VDC |
| Size（mm）: | 300*110*462 | Net Weight（kg）: | 10.5 |
| High Light: | 230VAC Off Grid Inverter,3.5KW Wireless Off Grid Inverter,Home high frequency solar inverter |
||
Product Description

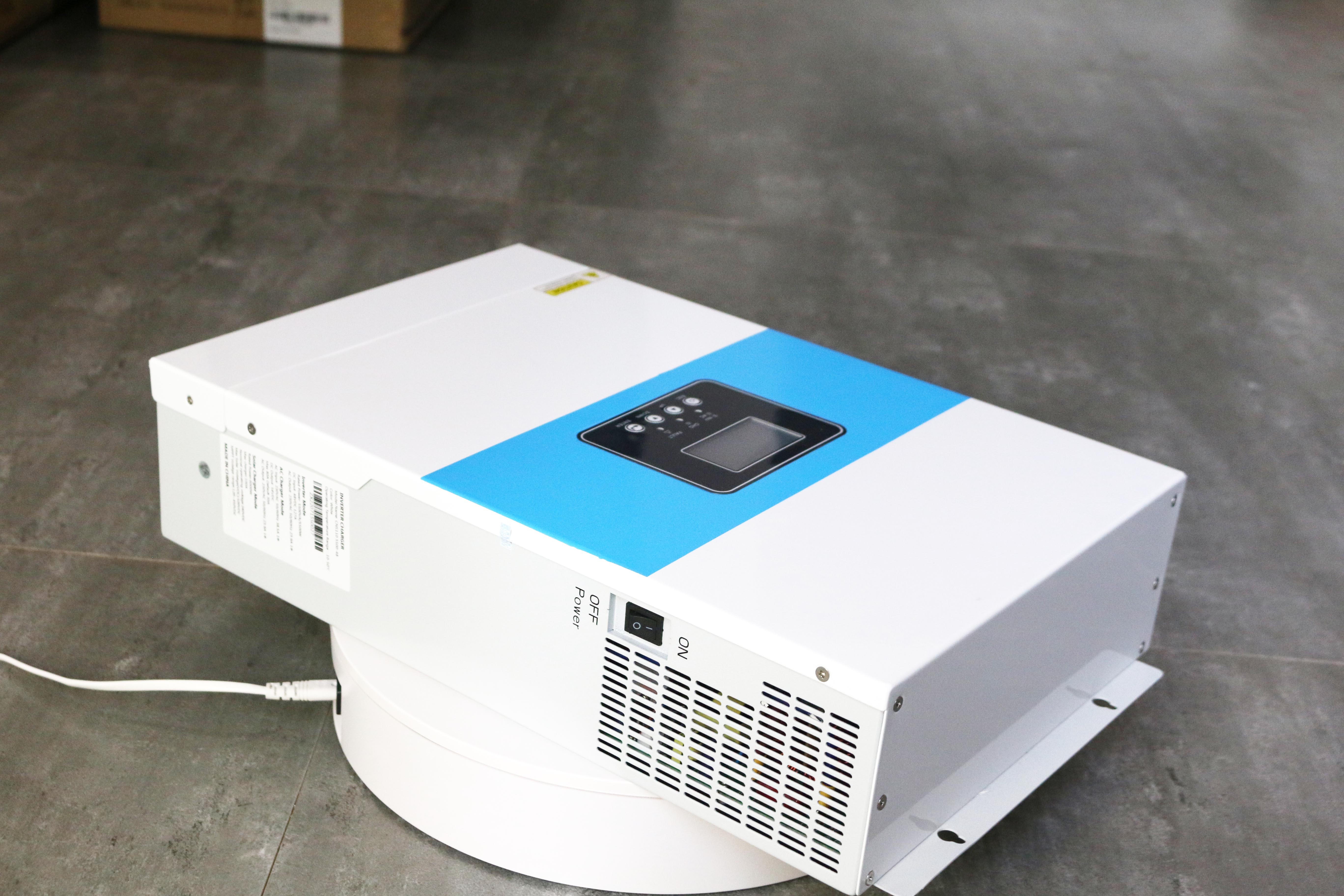

3.5KW Wireless Connected Home High Efficiency Inverter Off Grid Solar System Inverter
Description:
The main components of the horizontal inverter control machine
1. Photovoltaic module: convert light energy into DC power, charge the battery through the all-in-one machine, or directly invert into AC power to supply power to the load.
2. Mains or generator: connected to the AC input, it can supply power to the load and charge the battery at the same time. If not connected to a power source or generator, the system will work fine. Charging power is provided by batteries and photovoltaic modules.
3. Battery: The function of the battery is to ensure the normal power consumption of the system load when the solar energy is insufficient and there is no commercial power.
4. Household load: It can be connected to various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners, etc.
flow load.
5. Inverter control integrated machine: the energy conversion device of the entire system, the specific system wiring method is determined by the actual application scenario
Specifications:
| Rated power | 3500VA/3500W |
| Surge power | 7000VA |
| Battery voltage | 24VDC |
| Maximum AC charge current | 80A |
| MPPT operating voltage range | 120VDC-45VDC |
| Maximum PV charge current | 100A |
About installation:
When the off-grid inverter is directly connected to the solar panel, the following matters need to be paid attention to:
1. The output voltage of the solar panels connected in series must not be lower than 120V, otherwise the inverter will not be able to start;
2. It is necessary to accurately measure the distance between the off-grid inverter and the solar panel to determine the cable length;
3. Up to 6 inverters can be connected in parallel to provide a maximum output power of 33 kW;
4. The inverter needs to be firmly fixed on the wall or other panels to prevent it from falling
Details:
Company details:
Luoyang Tuxun Electronic Technology Co., Ltd. in the energy industry, has a number of industrial chains, the company has the
ability to quickly transfer customer needs to the production line, to provide personalized customized services. Our excellent
research and development ability also enables our products to be updated quickly. Compared with traditional production
enterprises, we have greater service advantages and have gained recognition from more customers.
